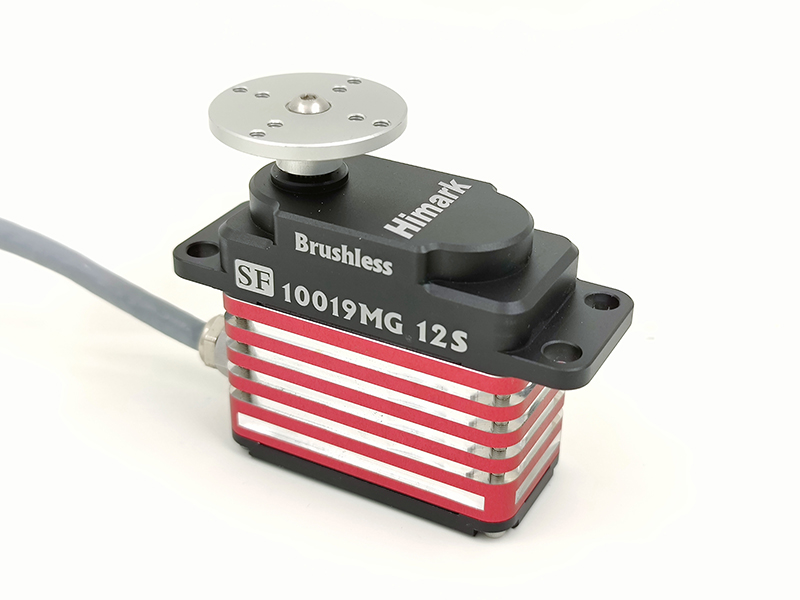

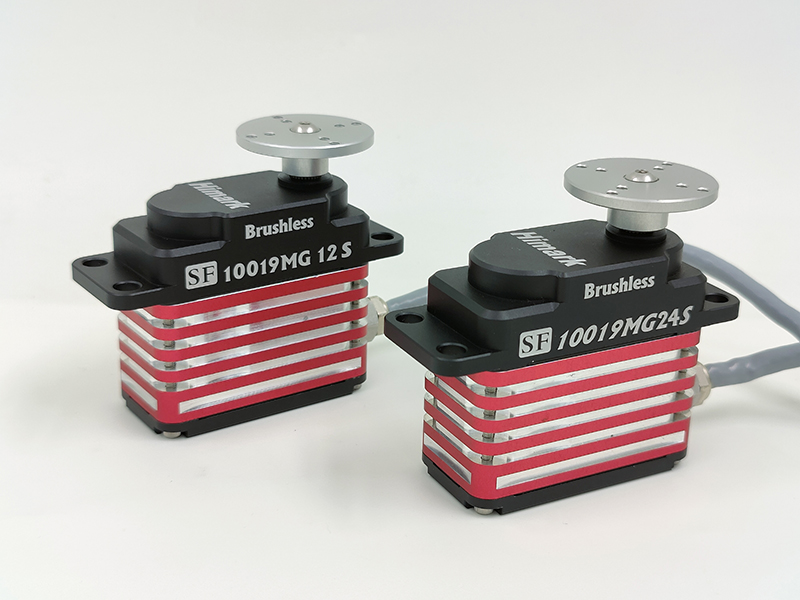

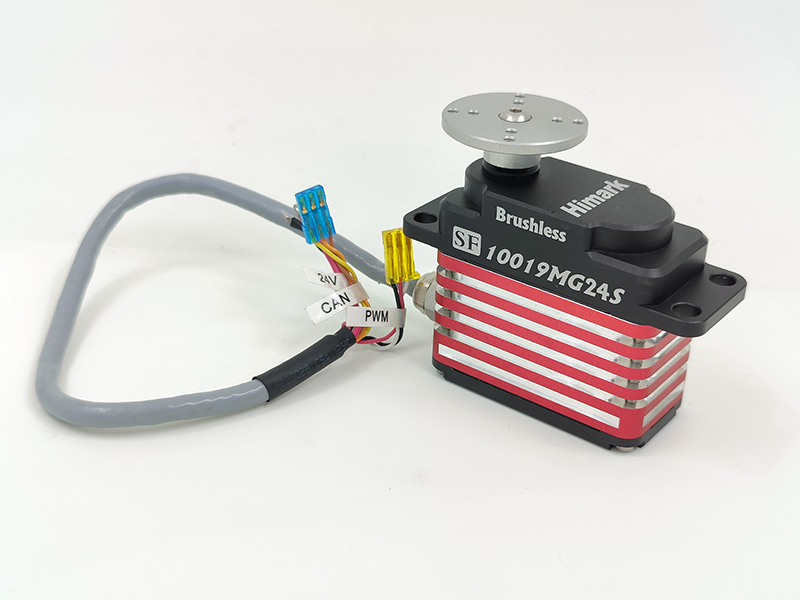

SF10019 Servo (100kg.cm)
SF10019 Servo (100kg.cm)
Control Mode | PWM/UART/CAN/RS485/RS422(Optional) | No-load Current | 0.6A |
Operating Voltage Range | 12V/24/28V | Stall Current | 5A/2.5A |

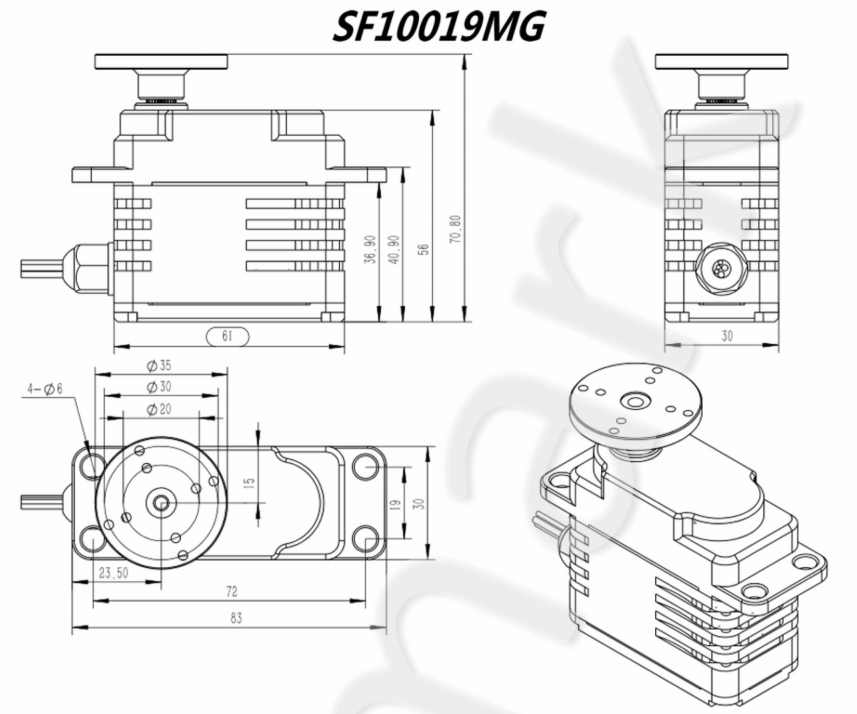

No-load Operating Speed | 0.19s/60° | Dimension | 83*71*30mm |
Stall Torque | 100kg.cm | Motor Type | Brushless |
Standing Torque | 50kg.cm (12V/24/28V) | Potentiometer Type | Magnetic coding |
Weight | 260g | Waterproof level | IP67 |
Application:UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation
