HIMARK

SF80045 Servo (800kg.cm)

Control Mode：PWM/UART/CAN/RS485 /RS422 (Optional)
Operating Voltage Range：24-32V
No-load operating Speed：0.45s/60°
Stall Torque：800kg.cm
Standing Torque：320kg.cm
No-load Current：0.35A
Stall Current： 3A
Dimension：120*55*145mm
Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

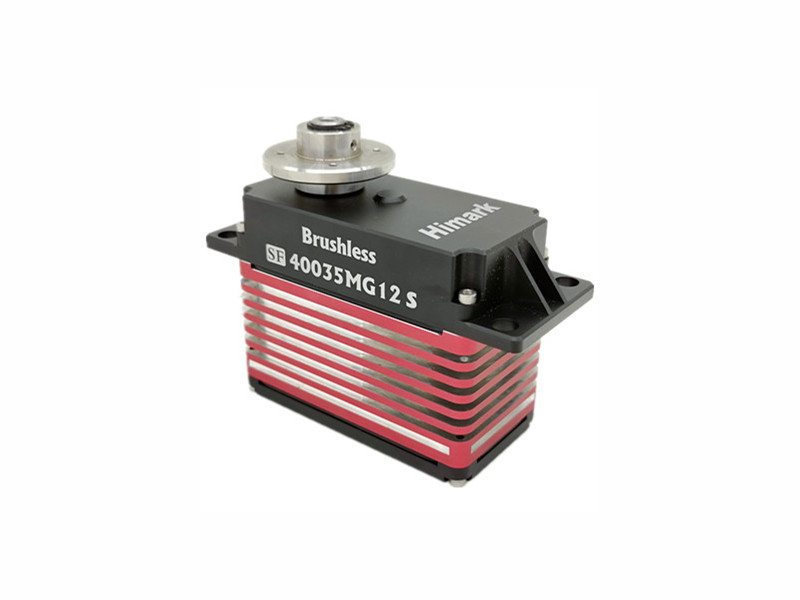

SF40035 Servo (400kg.cm)

Control Mode：PWM/UART/CAN/RS485 /RS422 (Optional)
Operating Voltage Range：8V-14V/24-28V
No-load operating Speed：0.35s/60°
Stall Torque：400kg.cm
Standing Torque：200kg.cm (12V/24V)
No-load Current：0.6A
Stall Current： 4A/2A
Dimension：132*110.90*55mm
Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

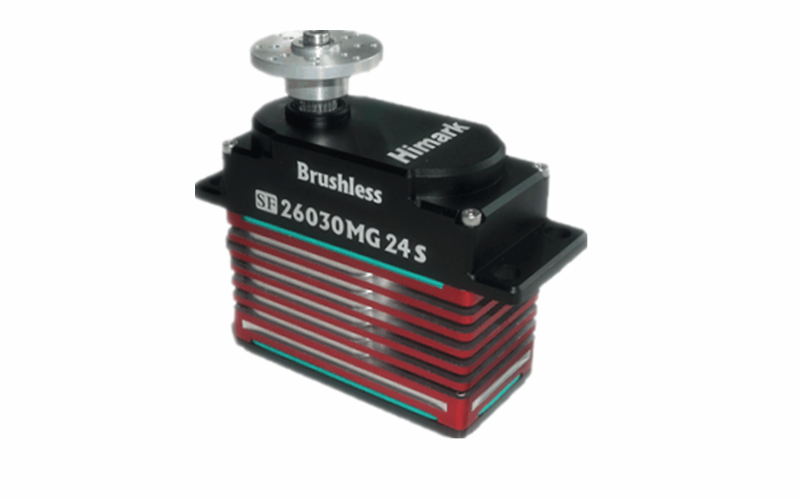

SF26030 Servo (260kg.cm)

Control Mode：PWM/UART/CAN/RS485 /RS422 (Optional)
Operating Voltage Range：24V/28V
No-load operating Speed：0.30s/60°
Stall Torque：260kg.cm
Standing Torque：130kg.cm (28V)
No-load Current：0.5A
Stall Current: 2A
Dimension：92*45*97.5mm
Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

SF22026 Servo (220kg.cm)

Control Mode：PWM/ CAN/RS422/RS485 (Optional)
Operating Voltage Range：24V/28V
No-load Operating Speed：0.26s/60°
Stall Torque：220kg.cm
Standing Torque：90kg.cm
No-load Current：0.6A
Stall Current:2A
Dimension：95.7*68*35mm
Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

SF15018 Servo (150kg.cm)

Control Mode：PWM/ CAN /RS422/RS485(Optional)
Operating Voltage Range：12/24/28V
No-load Operating Speed：0.18s/60°
Stall Torque：150kg.cm
Standing Torque：60kg.cm
No-load Current：0.6A
Stall Current：5/2.5/2A
Dimension：76*42*78.5mm
Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

SF10019 Servo (100kg.cm)

Control Mode：PWM/UART/CAN/RS485 /RS422 (Optional)
Operating Voltage Range：12V/24/28V
No-load operating Speed：0.19s/60°
Stall Torque：100kg.cm
Standing Torque：50kg.cm (12V/24/28V)
No-load Current：0.6A
Stall Current： 5A/2.5A
Dimension：83*71*30mm
Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

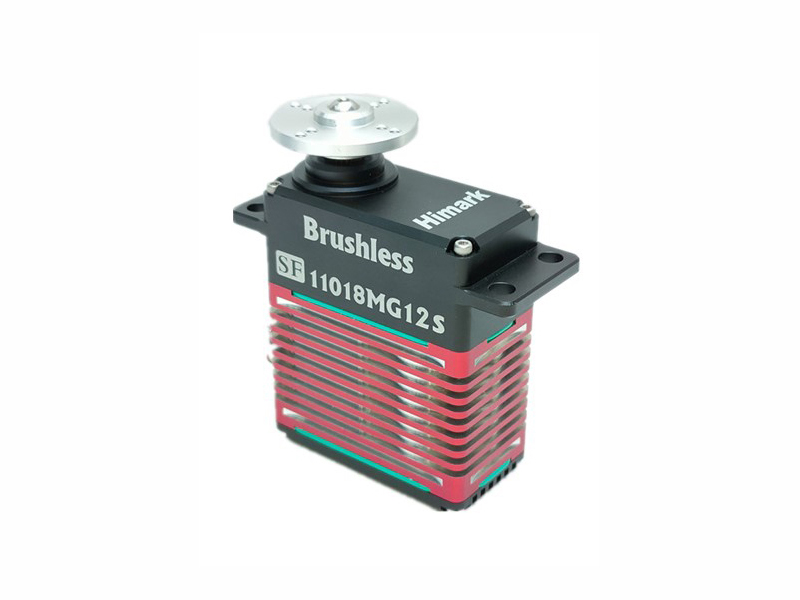

SF11018 Servo (110kg.cm)

Control Mode：PWM/UART/CAN/RS485 /RS422 (Optional)
Operating Voltage Range：12V/24/28V
No-load operating Speed：0.18s/60°
Stall Torque：110kg.cm
Standing Torque：55kg.cm (12V/24/28V)
No-load Current：0.6A
Stall Current： 4A/2A
Dimension：64*32.8*76.5mm
Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

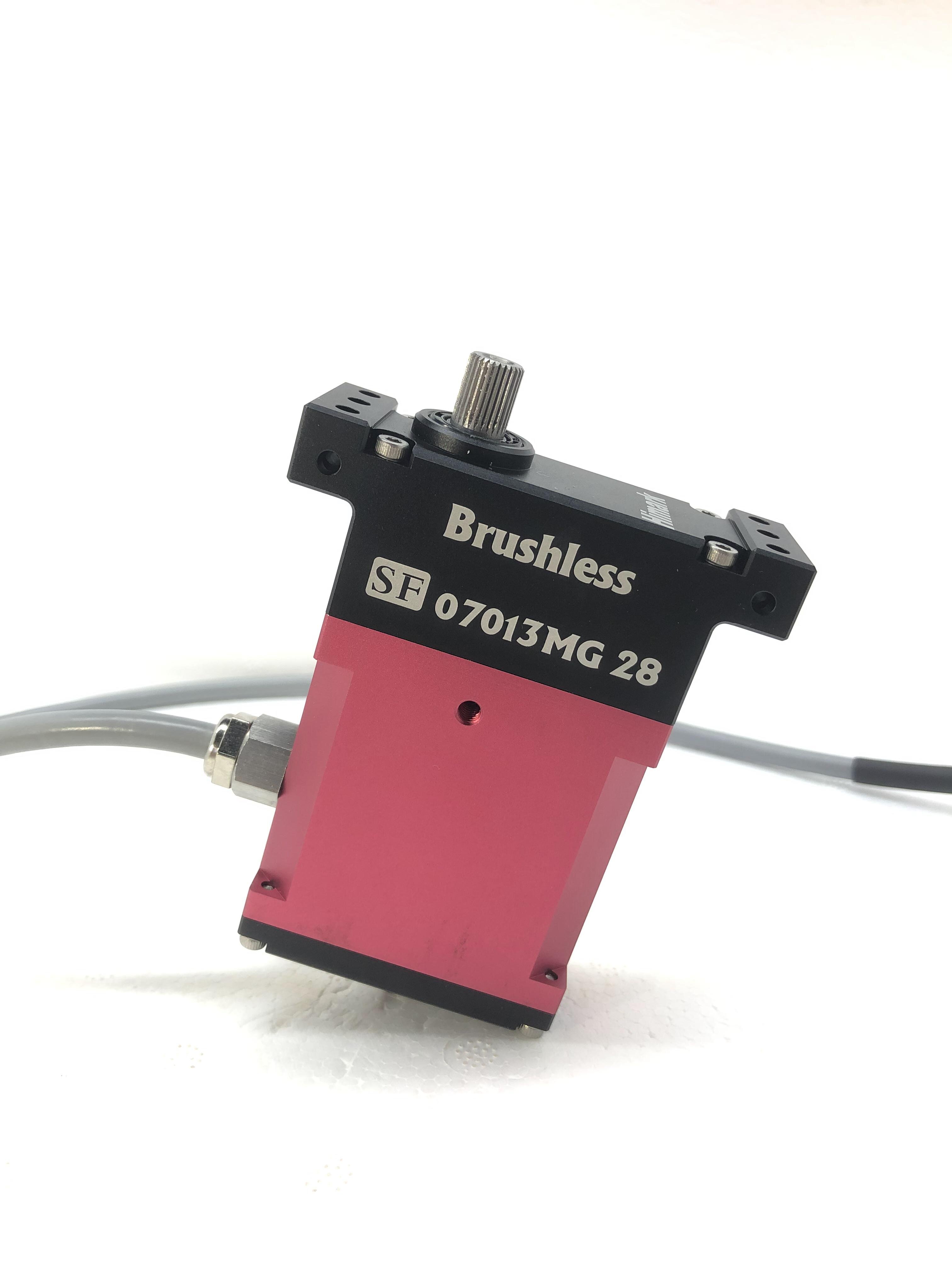

SF7013 Servo (70kg.cm)

Control Mode：PWM/ CAN /RS422/RS485(Optional)
Operating Voltage Range：24V
No-load Operating Speed：0.13s/60°
Stall Torque：70kg.cm
Standing Torque：28kg.cm
No-load Current：0.4A
Stall Current：2A
Dimension：70*24*86.2mm
Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

SF6011 Servo (60kg.cm)

Control Mode：PWM/UART/CAN/RS485 /RS422 (Optional)
Operating Voltage Range：12V/24/28V
No-load operating Speed：0.11s/60°
Stall Torque：60kg.cm
Standing Torque：30kg.cm (12V/24/28V)
No-load Current：0.6A
Stall Current: 5A/2.5A
Dimension：82.5*72*30mm
Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

SF3516 Tilt Servo (35kg.cm)

Control Mode：PWM/UART/CAN/RS485 /RS422 (Optional)
Operating Voltage Range：4.8-8.4V (2S)
No-load operating Speed：0.16s/60°
Stall Torque：35kg.cm
Standing Torque：17kg.cm (7.4V)
No-load Current：0.2A
Stall Current: 2.5A
Dimension：62*54.8*25mm
Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

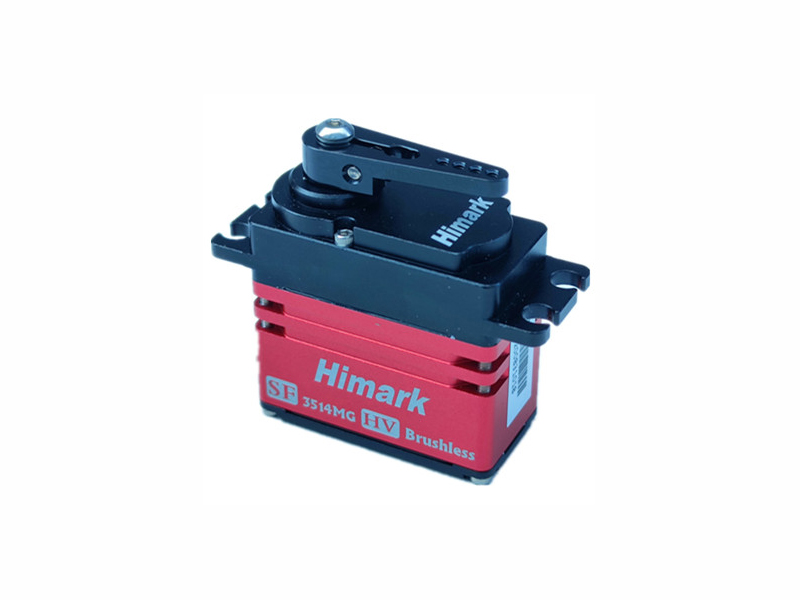

SF3514 Servo (35kg.cm)

Control Mode：PWM/UART/CAN/RS485 /RS422 (Optional)
Operating Voltage Range：4.8-8.4V (2S)
No-load operating Speed：0.14s/60°
Stall Torque：35kg.cm
Standing Torque：17kg.cm (7.4V)
No-load Current：0.2A
Stall Current: 2.5A
Dimension：40*20*43mm
Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

SF2507 Servo (25kg.cm)

Control Mode：PWM/UART/CAN/RS485 /RS422 (Optional)
Operating Voltage Range：4.8-8.4V (2S)
No-load operating Speed：0.07s/60°
Stall Torque：25kg.cm
Standing Torque：12kg.cm (7.4V)
No-load Current：0.2A
Stall Current: 2.5A
Dimension：40*20*43mm
Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation
