SF3516 Tilt Servo (35kg.cm)
SF3516 Tilt Servo (35kg.cm)
Control Mode | PWM/UART/CAN/RS485/RS422(Optional) | No-load Current | 0.2A |
Operating Voltage Range | 4.8-8.4V (2S) | Stall Current | 2.5A |

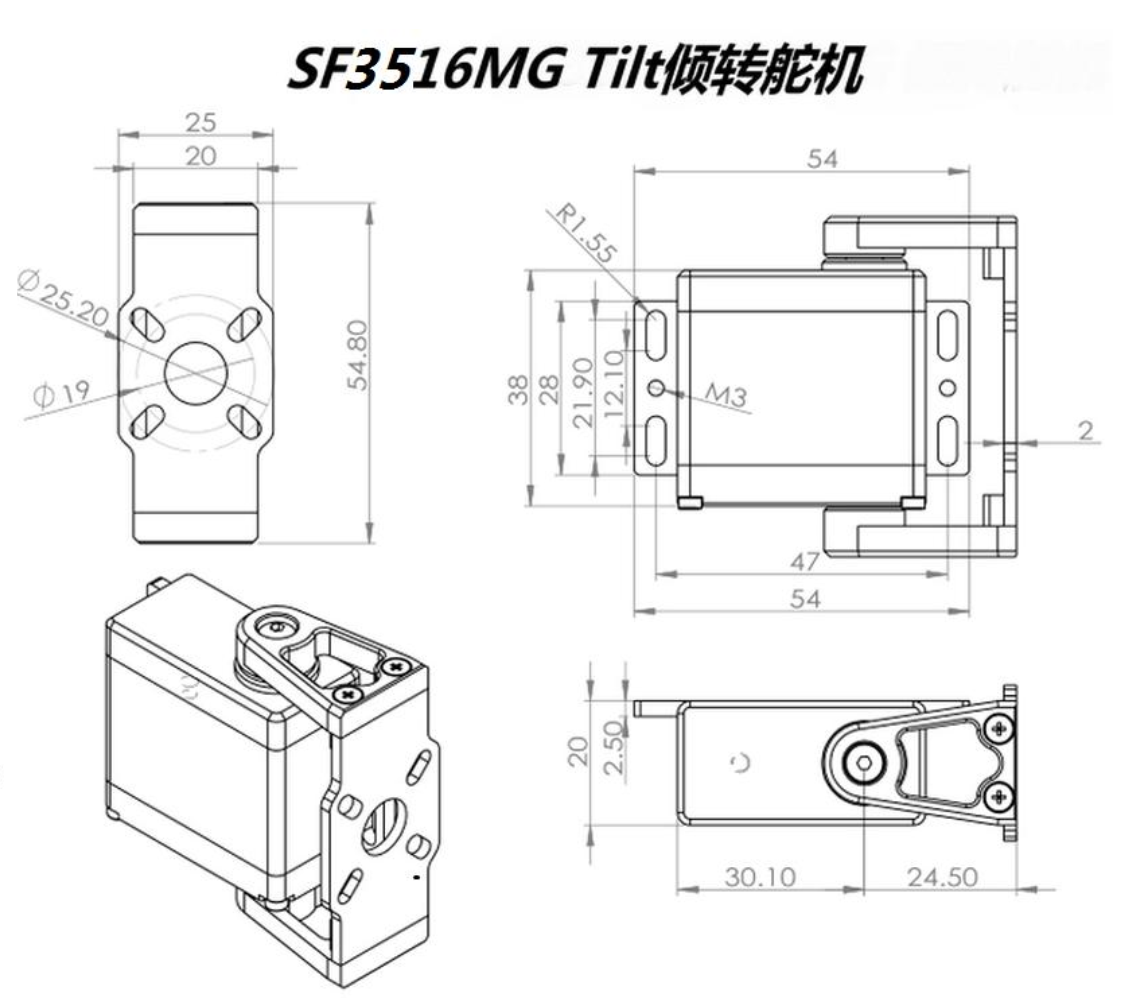

No-load Operating Speed | 0.16s/60° | Dimension | 62*54.8*25mm |
Stall Torque | 35kg.cm | Motor Type | Brushless |
Standing Torque | 17kg.cm (7.4V) | Potentiometer Type | Magnetic coding |
Weight | 83g | Waterproof level | IP64 |
Application:UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation
