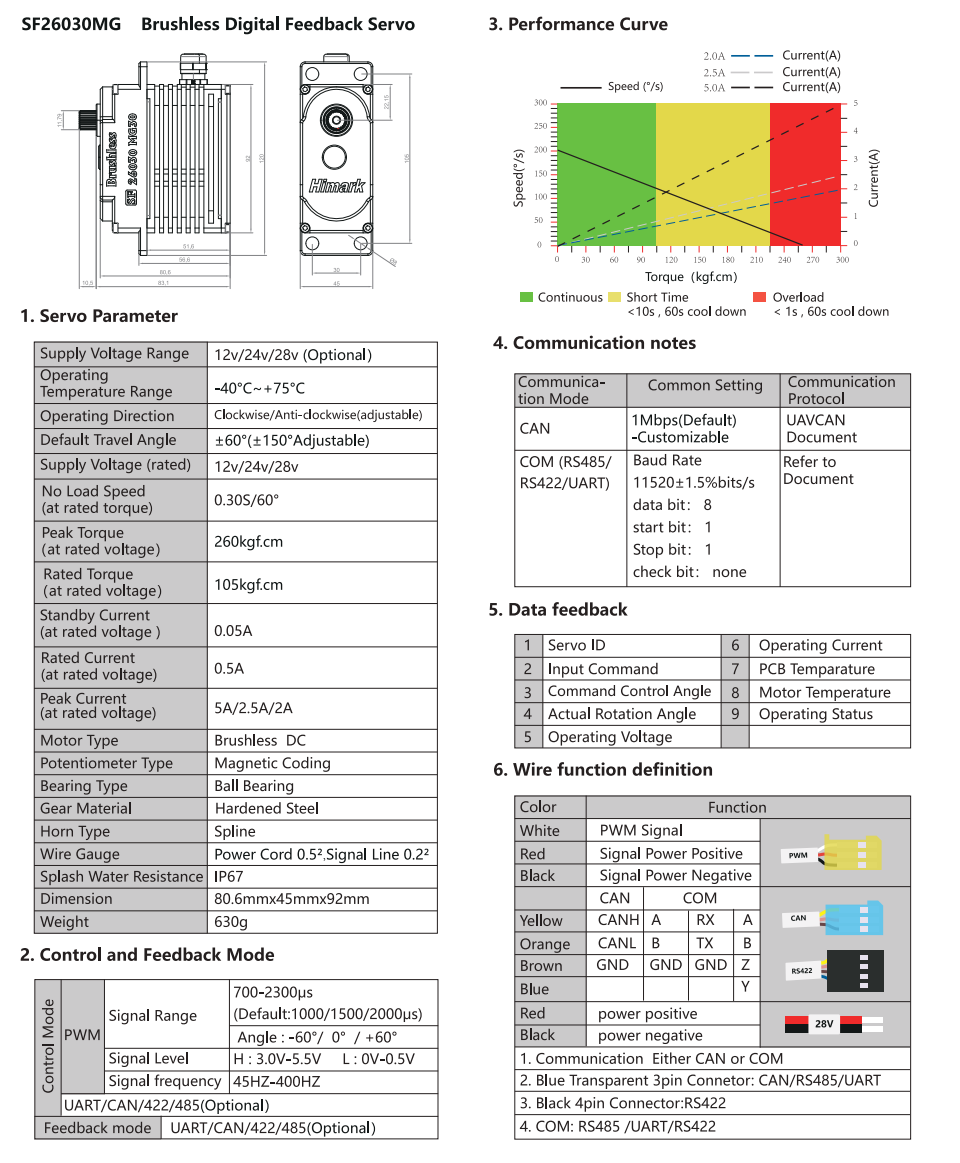

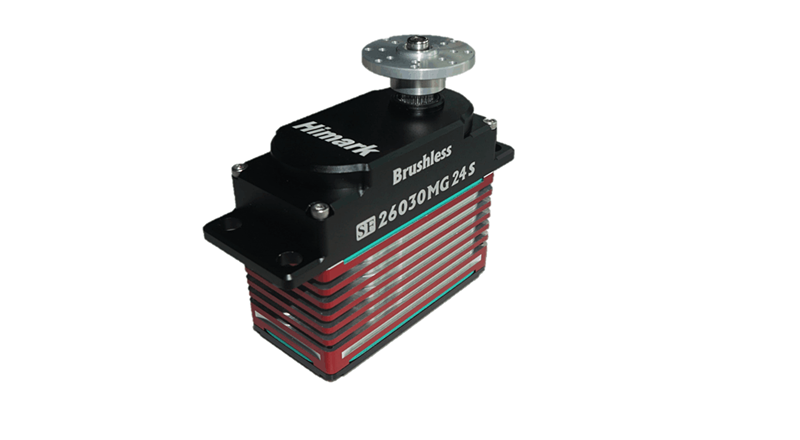

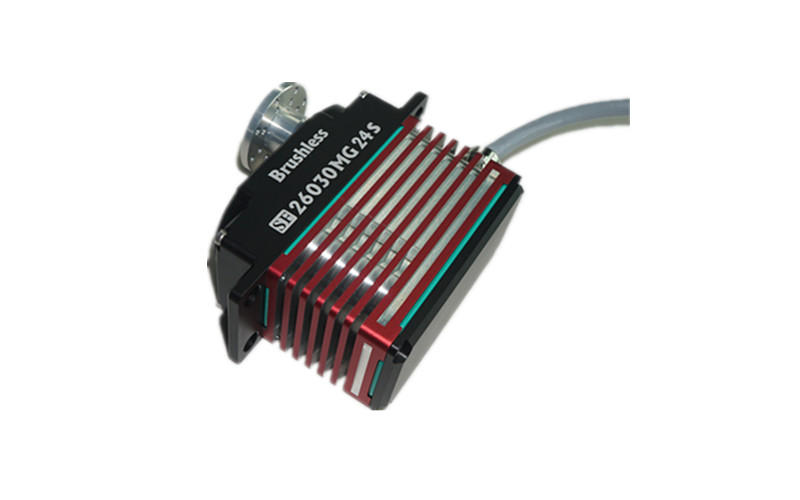

SF26030 Servo (260kg.cm)
SF26030 Servo (260kg.cm)
Control Mode | PWM/UART/CAN/RS485/RS422(Optional) | No-load Current | 0.5A |
Operating Voltage Range | 24V/28V | Stall Current | 2A |

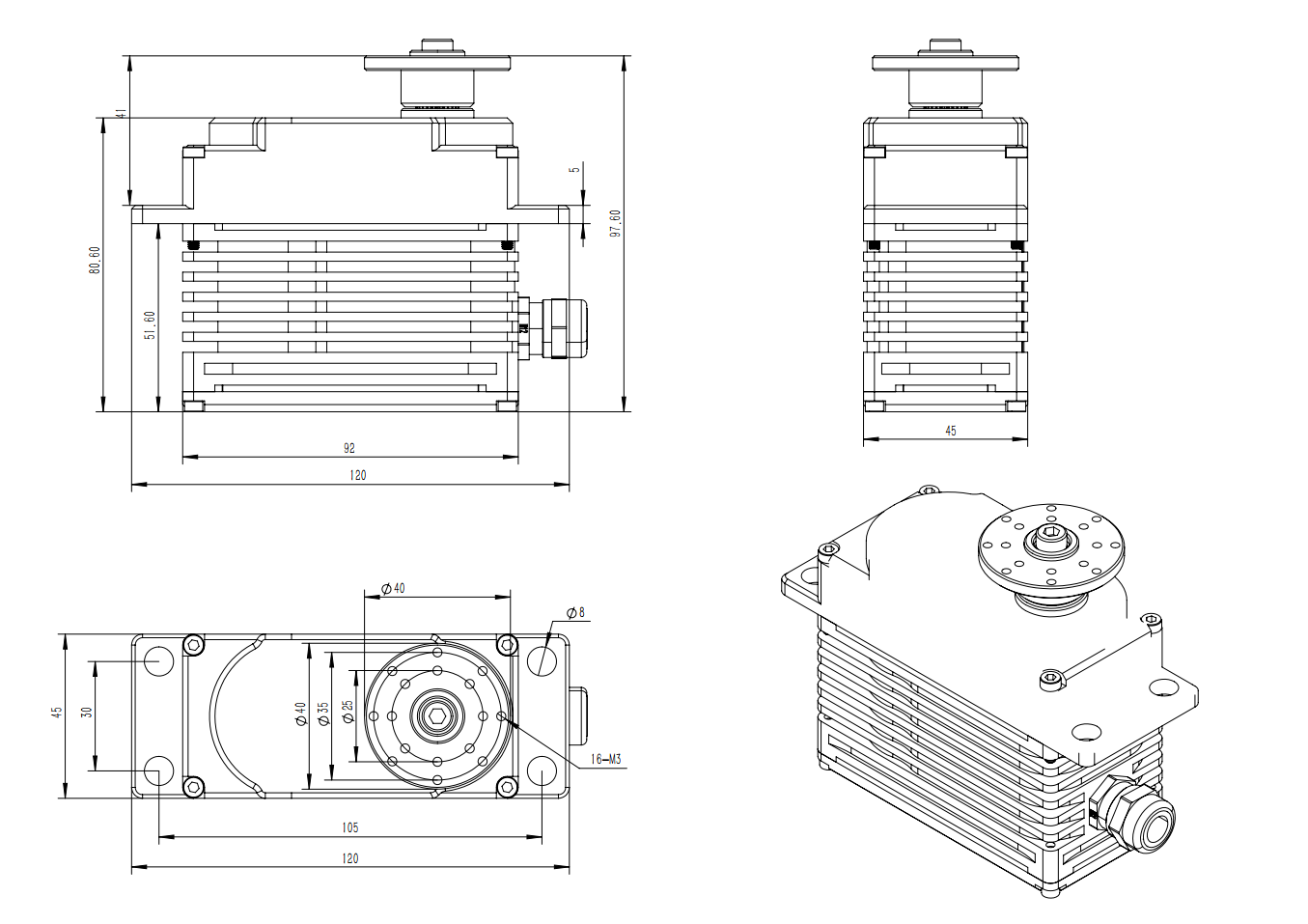

No-load Operating Speed | 0.30s/60° | Dimension | 92*45*97.5mm |
Stall Torque | 260kg.cm | Motor Type | Brushless |
Standing Torque | 130kg.cm (28V) | Potentiometer Type | Magnetic coding |
Weight | 630g | Waterproof level | IP67 |
Application:UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation
