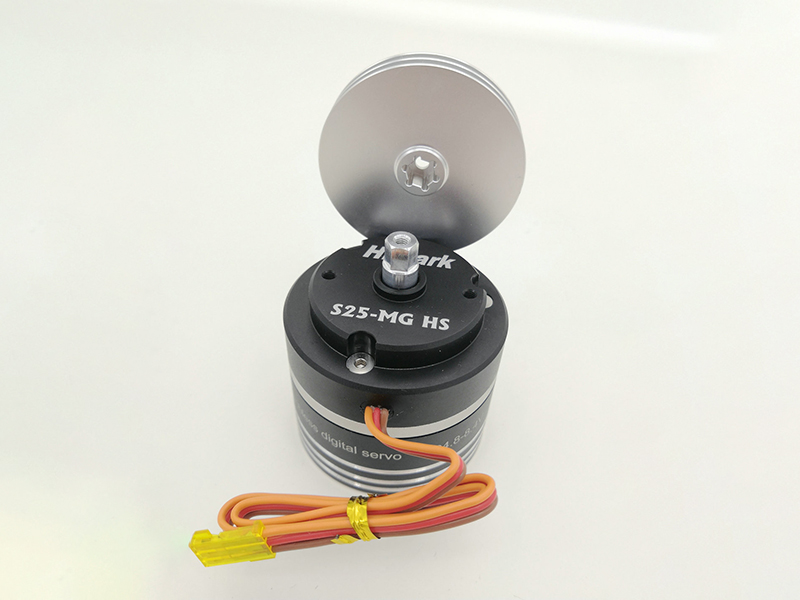

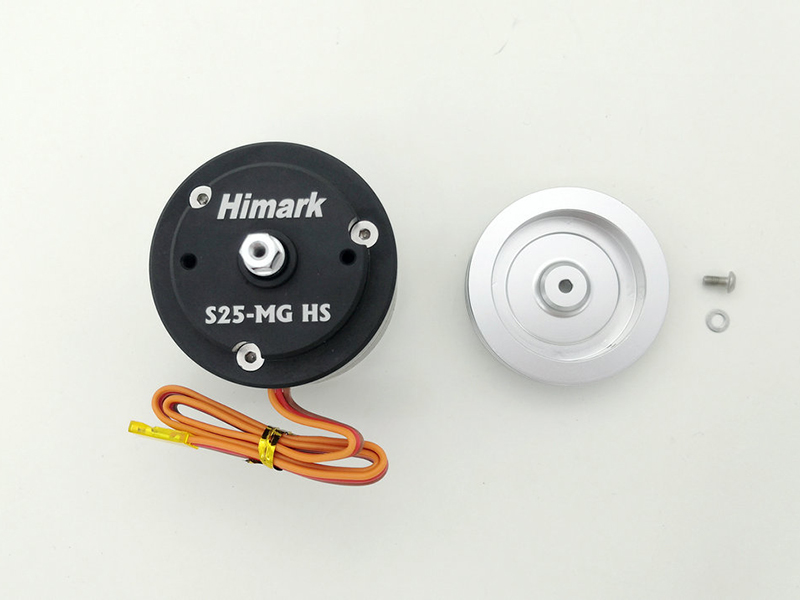

S25-MG Sail Winch Servo
S25-MG Sail Winch Servo

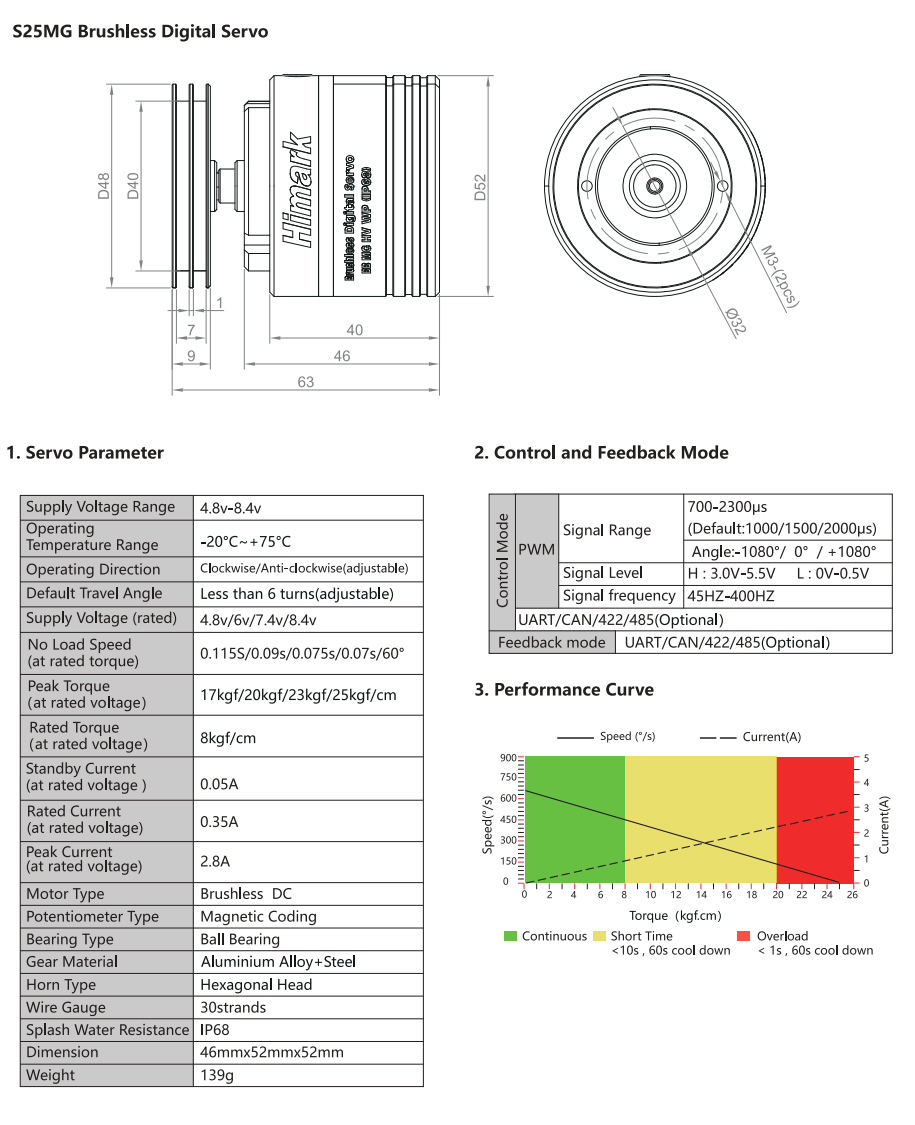

Control Mode | PWM | No-load Current | 0.35A |
Operating Voltage Range | 4.8V/6V/7.4V/8.4V | Stall Current | 2.8A |

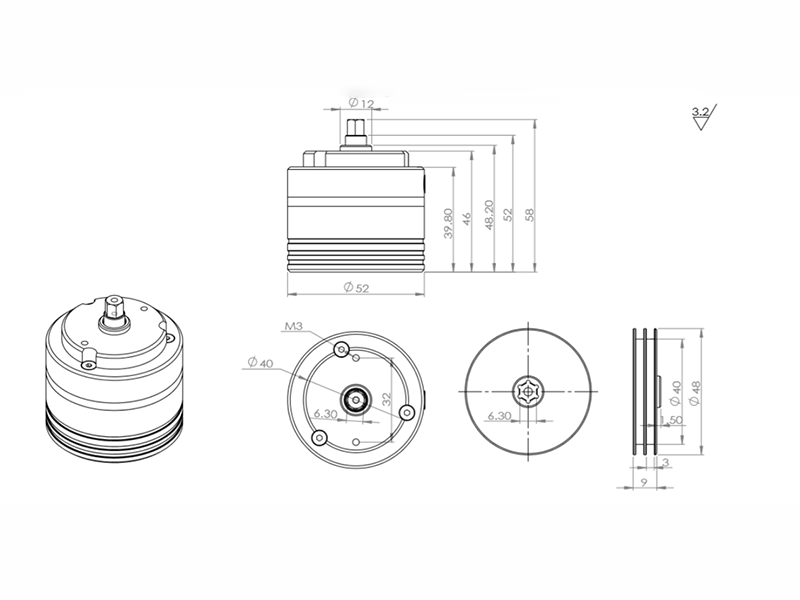

No-load Operating Speed | 0.09s/0.074s/0.06s/0.052s/60° | Dimension | 63*52*52mm |
Stall Torque | 17/20/23/25kg/cm | Motor Type | Brushless |
Standing Torque | 12.5kg/cm (4.8V/6V/7.4V/8.4V) | Potentiometer Type | Magnetic coding |
Weight | 139g | Waterproof level | IP68 |
