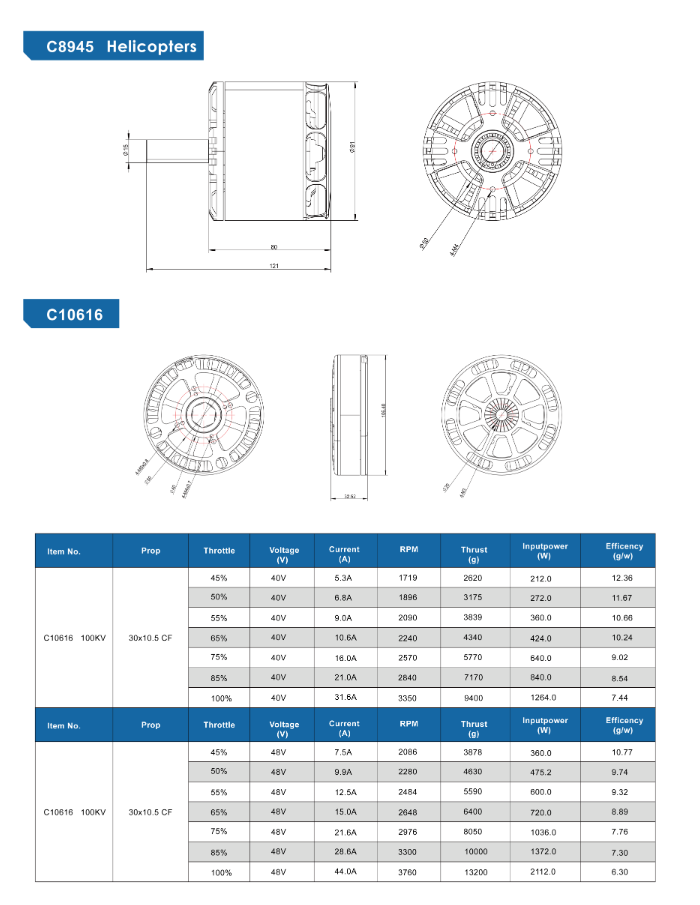

C8945 Helicopter motor
C8945 Helicopter motor
Structure | Outer-rotor | Slots; Poles | 24N20P |
Weight | 1.72kg | KV | rpm/v 200 |
Outer Diameter/Length | 91mm/80mm | Torque | 4.5Nm |
Output shaft length and diameter | 54mm/15mm | Voltage | 12-14S |
Motor mounting holes | 50/4*M4 | Cruising Power/ Current | 4000W/90A |
Maximum current/ power | 135A(120S）/6000W | Maximum continuous power | 5300W |
