HIMARK

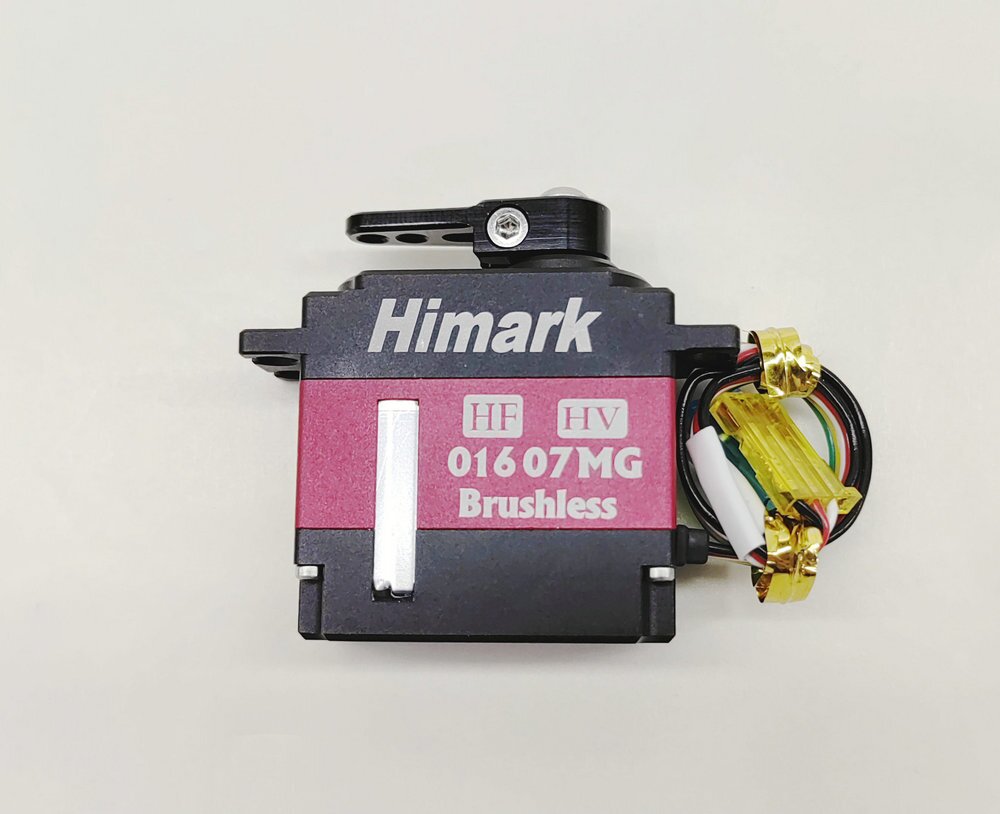

SF1607 Servo (16kg.cm)

Control Mode：PWM/ CAN (Optional)
Operating Voltage Range：4.8V-8.4V
No-load Operating Speed：0.07s/60°
Stall Torque：16kg.cm
Standing Torque：6.5g.cm
No-load Current：0.4A
Stall Current：3A
Dimension：35.5*15*35mm
Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

SF8008 Servo (8kg.cm)

Control Mode：PWM/ CAN (Optional)
Operating Voltage Range：4.8V-8.4V(2S)
No-load Operating Speed：0.08s/60°
Stall Torque：8kg.cm
Standing Torque：3kg.cm (7.4V)
No-load Current：0.3A
Stall Current：1A
Dimension：30*10*33mm
Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

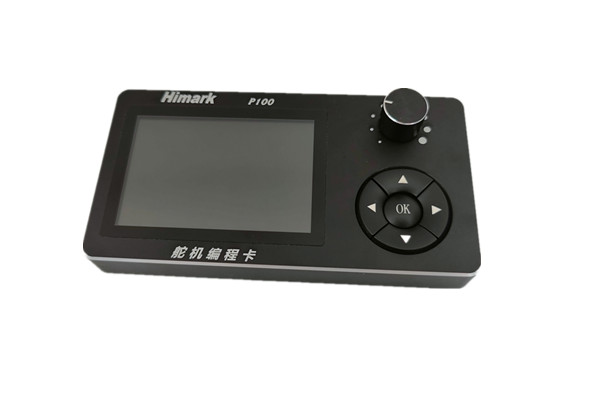

Servo Programming Card

Functions:
1. Operation Parameter Setting
2. Servo motion test
3. System program upgrade
4. Data feedback: PWM Input、Pos Cmd、Pos Sensor、Voltage、Current

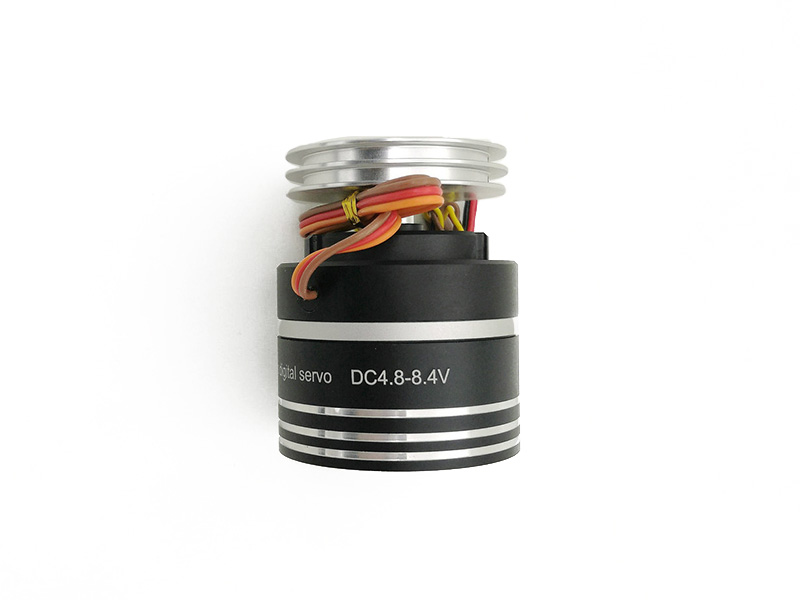

S25-MG Sail Winch Servo

Control Mode：PWM
Operating Voltage Range：4.8V/6V/7.4V/8.4V
No-load operating Speed：0.09s/0.074s/0.06s/0.052s/60°
Stall Torque：17/20/23/25kg.cm
Standing Torque：12.5kg.cm (4.8V/6V/7.4V/8.4V)
No-load Current：0.35A
Stall Current: 2.8A
Dimension：63*52*52mm

C8945 Helicopter motor

We can customize for you:
Structure：Outer-rotor
Weight：1.72kg
Outer diameter：91mm
Length：80mm
Output shaft length：54mm
Output shaft diameter：15mm
Motor mounting holes：50/4*M4
Slots; Poles：24N20P
KV：rpm/v 200
Torque：4.5Nm
Voltage：12-14S
Cruising Power：4000W
Cruising current：90A
Maximum continuous power：5300W
Maximum current：135A(120S）
Maximum power: 6000W
Rated speed: 8000-9000r/min (Optimal torque output speed range)

C8714 Multirotor Motor

We can customize for you:
Structure：Outer-rotor
Weight：358g
Outer diameter：87mm
Length：31.5mm
Output shaft length：customized
Output shaft diameter：customized
Motor mounting holes：32/4*M4
Slots; Poles：36N40P
KV：rpm/v 100（customized）
Torque：3.0Nm
Voltage：12-14S （customized）
Cruising Power：450W
Cruising current：9.5A
Maximum continuous power：1200W
Maximum current：35A(180S）
Maximum power: 1500W

OEM/ODM

If you …
1. Are looking for OEM/ODM manufacturers in our industry.
2. Need someone that can produce what you want and have a custom design printed to your specification.
Then our OEM/ODM service is for you! Please send customized request to us.

Factory Tour

If you …
1. Would like more information about our company.
2. Would like to visit China and interested in working with us.
Then our Factory Tour service is for you!

Overseas Agent/Branch

1.Would like to become agents or distributors at your district.
Then please contact himark@himark.cn for further discussion.
2. Are searching for an agent or distributor around you.
Then our Overseas Agent/Branch service is for you!

RC Airplanes BLDC motor

We can customize for you:
Overal diameter：C16 /C22/C28/C35/C42/C50/C63/C89(Customized)
Weight：8.5g-1240g (Optional)
Max Burst Current: 3.5A-150A
Recommended Battery: 2S-12S Li-Po
Recommended Props: 3x3-25 x 12
Recommended Brushless ESC: 4A-200A

Feature：
Brushless motor with long life
High torque output
Mounting hardware and accessories included
Quiet and lightweight
Hardened steel shaft supported by high quality ball bearings

Application: RC Airplanes

Surfboard BLDC motor

We can customize for you:
Structure: Inner-rotor/Outer-rotor
Dimensions: 117mm/96mm
KV: 160kv/123kv
Torque: 7.45Nm /7.5 Nm
Voltage: 12S (44.40V)/16S (60V)
Cruising power: 5400W/5500W
Cruising current: 119A/90A
Maximum continuous power: 9000W
Maximum current：250A / 166A
Maximum power: 11000W/10000W
Rated speed: 6500r/min

Feature：
Brushless motor with long life
High Efficient
High Power
Heavy

Application: Electric surfboard

Medical BLDC motor

We can customize for you:
Dimensions： 30*20 /32*08/35*10/63*10 mm (Optional)
Voltage：12V/24V (Optional)
RPM：10000-25000 rpm (Optional)
Noise: ≤50db (Optional)

Feature：
Brushless motor with long life
Quiet& Light
High efficient
Quick to react

Application: Medical equipment
