Control Mode：PWM/ CAN /RS422/RS485(Optional) Operating Voltage Range：12/24/28V No-load Operating Speed：0.18s/60° Stall Torque：150kg.cm Standing Torque：60kg.cm No-load Current：0.6A Stall Current：5/2.5/2A Dimension：76*42*78.5mm Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

Control Mode：PWM/UART/CAN/RS485 /RS422 (Optional) Operating Voltage Range：4.8-8.4V (2S) No-load operating Speed：0.07s/60° Stall Torque：25kg.cm Standing Torque：12kg.cm (7.4V) No-load Current：0.2A Stall Current: 2.5A Dimension：40*20*43mm Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

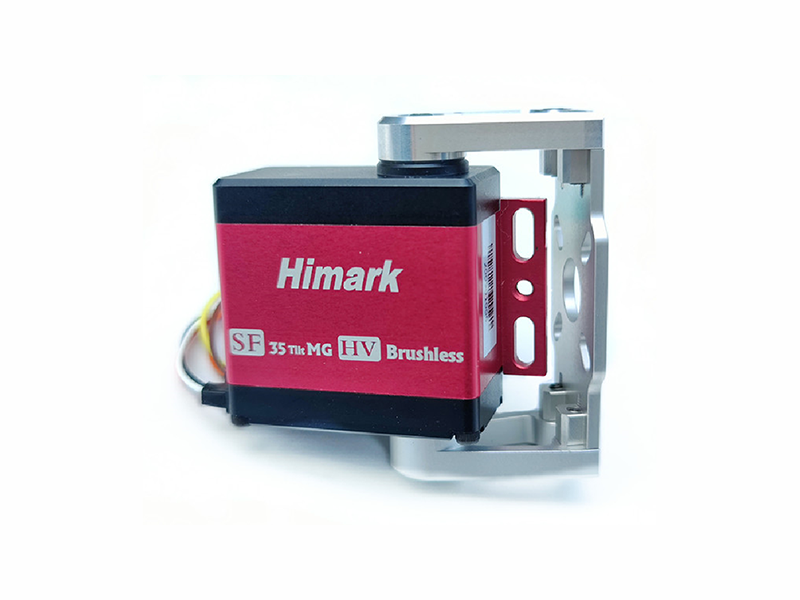

Control Mode：PWM/UART/CAN/RS485 /RS422 (Optional) Operating Voltage Range：4.8-8.4V (2S) No-load operating Speed：0.16s/60° Stall Torque：35kg.cm Standing Torque：17kg.cm (7.4V) No-load Current：0.2A Stall Current: 2.5A Dimension：62*54.8*25mm Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

Control Mode：PWM/UART/CAN/RS485 /RS422 (Optional) Operating Voltage Range：12V/24/28V No-load operating Speed：0.11s/60° Stall Torque：60kg.cm Standing Torque：30kg.cm (12V/24/28V) No-load Current：0.6A Stall Current: 5A/2.5A Dimension：82.5*72*30mm Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

Control Mode：PWM/UART/CAN/RS485 /RS422 (Optional) Operating Voltage Range：12V/24/28V No-load operating Speed：0.19s/60° Stall Torque：100kg.cm Standing Torque：50kg.cm (12V/24/28V) No-load Current：0.6A Stall Current： 5A/2.5A Dimension：83*71*30mm Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

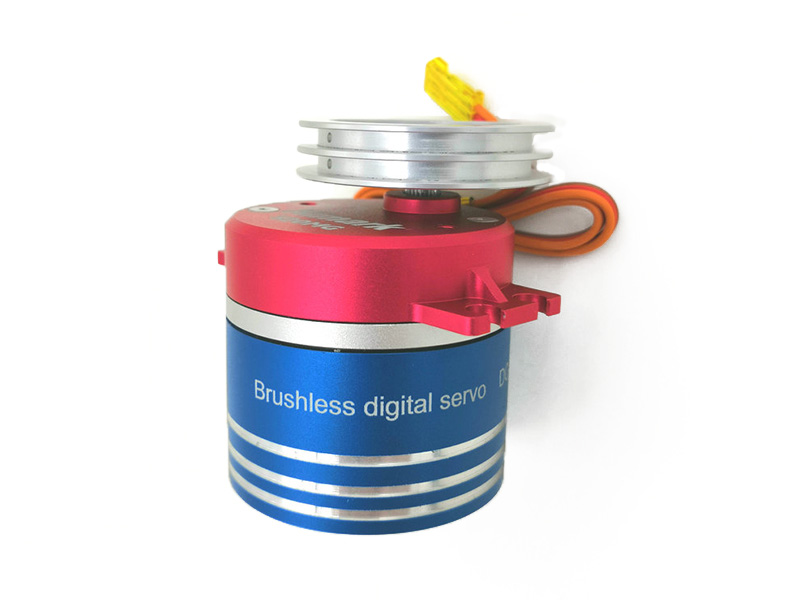

Control Mode：PWM/UART/CAN/RS485 /RS422 (Optional) Operating Voltage Range：24-32V No-load operating Speed：0.45s/60° Stall Torque：800kg.cm Standing Torque：320kg.cm No-load Current：0.35A Stall Current： 3A Dimension：120*55*145mm Application: UAV/Helicopters, VTOL aircrafts, Fixed wings, Unmanned boat, Factory automation

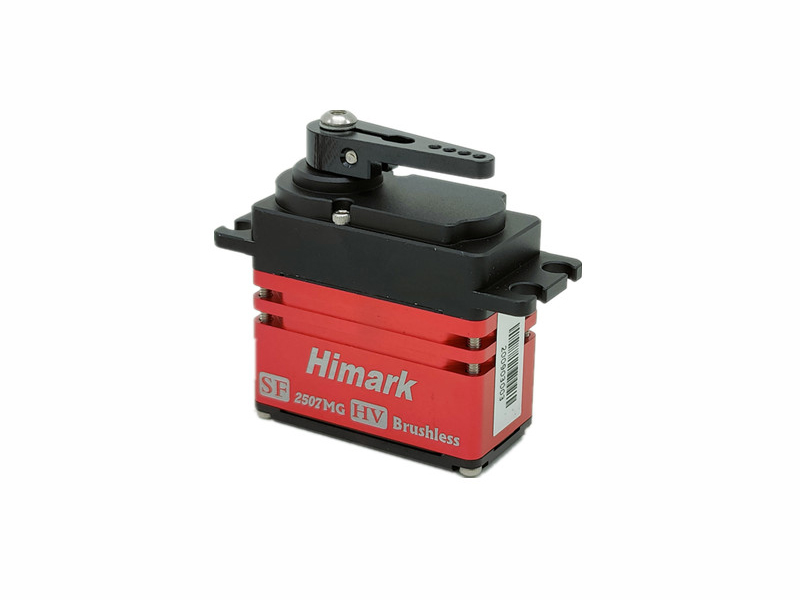

Control Mode：PWM Operating Voltage Range：4.8V/6V/7.4V/8.4V No-load operating Speed：0.115s/0.09s/0.075s/0.07s/60° Stall Torque：13/17/19/22kg/cm Standing Torque：11kg/cm (4.8V/6V/7.4V/8.4V) No-load Current：0.35A Stall Current: 4.9A Dimension：60*58*55mm

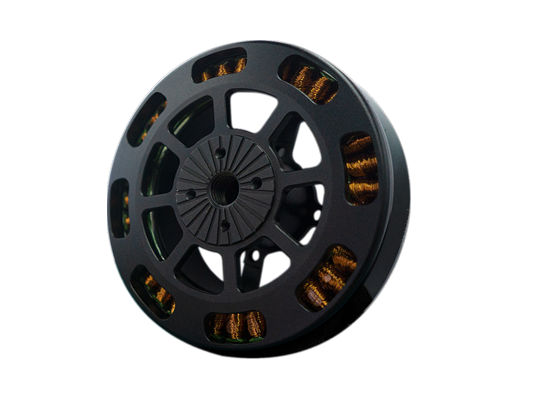

We can customize for you: Structure：Outer-rotor Weight：358g Outer diameter：87mm Length：31.5mm Output shaft length：customized Output shaft diameter：customized Motor mounting holes：32/4*M4 Slots; Poles：36N40P KV：rpm/v 100（customized） Torque：3.0Nm Voltage：12-14S （customized） Cruising Power：450W Cruising current：9.5A Maximum continuous power：1200W Maximum current：35A(180S） Maximum power: 1500W

We can customize for you: Structure：Outer-rotor Weight：1.72kg Outer diameter：91mm Length：80mm Output shaft length：54mm Output shaft diameter：15mm Motor mounting holes：50/4*M4 Slots; Poles：24N20P KV：rpm/v 200 Torque：4.5Nm Voltage：12-14S Cruising Power：4000W Cruising current：90A Maximum continuous power：5300W Maximum current：135A(120S） Maximum power: 6000W Rated speed: 8000-9000r/min (Optimal torque output speed range)
